Product Description

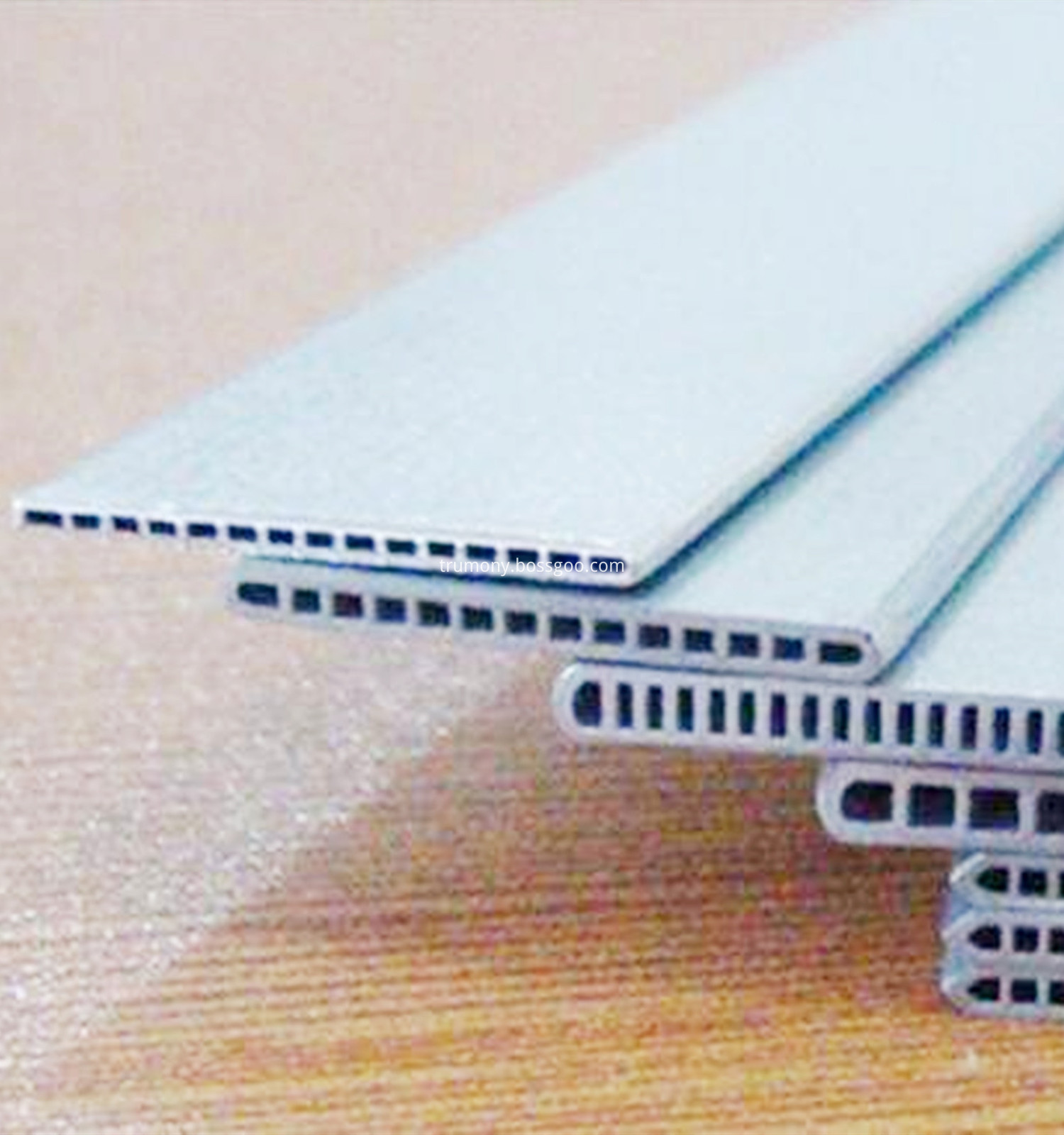

1100/3102/3003 Micro-multiport Flat Extrusion Aluminum Tube
Micro Multiport Extruded Aluminum Tube are widely used for auto condenser and evaporator, it is very important spare parts for heat exchanging, high corrosion-resistance and good heat conductivity are their features.
In addition, we have our own CNC center,lots ready molds for your reference.
You will not pay extra molds’ charge if our specification is suitable for you.
Aluminum Coil/Sheet/Tube/Foil, Heat Exchanger Parts, Aluminum Profile, CNC Aluminum Sheet Or Spare Part, Automobile Lightweight Aluminum Materials are our main products,We have 15 years’ exporting experience, customers are more than 50 countries, our customers give us good comments on quality, price and service.
Commonly used material chemical composition
|
No.
|
Alloy
|
Si
|
Fe
|
Cu
|
Mn
|
Mg
|
Cr
|
Zn
|
V
|
Ti
|
|
1
|
1050
|
≤0.25
|
≤0.40
|
≤0.05
|
≤0.05
|
≤0.05
|
---
|
≤0.05
|
≤0.05
|
≤0.03
|
|
2
|
1100
|
≤0.95(Si+Fe)
|
0.05-0.20
|
≤0.05
|
---
|
---
|
≤0.10
|
---
|
---
|
|
3
|
3102
|
≤0.40
|
≤0.70
|
≤0.10
|
0.05-0.40
|
---
|
---
|
≤0.30
|
---
|
≤0.10
|
|
4
|
3003
|
≤0.15
|
≤0.15
|
≤0.01
|
0.90-1.10
|
≤0.03
|
≤0.03
|
≤0.05
|
≤0.05
|
≤0.05
|
Supply state and mechanical properties
|
Alloy
|
Temper
|
Tensile Strength
|
Yield Strength
|
Elongation
|
|
1050
|
O/F/H111/H112
|
≥65MPa
|
≥20MPa
|
≥25%
|
|
1100
|
O/F/H111/H112
|
≥75MPa
|
≥20MPa
|
≥25%
|
|
3102
|
O/F/H111/H112
|
≥75MPa
|
≥20MPa
|
≥25%
|
|
3003
|
O/F/H111/H112
|
≥75MPa
|
≥20MPa
|
≥25%
|
The corrosion resistance performance
Salt spray test ≥750hours
The pressure resistance performance
|
Automobile Condensers
|
Household Condensers
|
Evaporators
|
|
≥9MPa
|
≥13.5 MPa
|
≥3.5 MPa
|
Multiport Extruded Aluminum Tube(MPE)
which is used for automobile air conditioner condenser has larger internal section area, better effectiveness for heat transfer. At the same time, has the following characteristics:
1. Low weight
2. Good thermal and electricity conductivity
3. Excellent corrosion resistance
4. High cycle reuse value
5. High surface quality
6. Narrow tolerance range
Beside increased global performances, an all-aluminium brazed heat exchanger using MPE will also present better corrosion resistance. MPEs are primarily used for the following applications:
Condensers
Evaporators
Oil coolers
Radiators
Heater cores
Package: In coil or Straight with fixed length.
Surface Treatment : With Zinc spraying or without Zinc spraying.
Terms and conditions:
1, Trade term: CIF / CFR / FOB
2, Payment term: 30% before production+70% before shipment
100% Irrevocable L/C at sight
Or we can further cummunicate with each other about this part.
3, Shipment: Normally it is about 30-35days.I
4, MOQ: 5 metric tons for each thickness. (Normally it is formed according to the concrete specifications.)
5, Quantity tolerance: +/-10% of total quantity as confirmed PI.
Commercial terms
|
Minimum Order Quantity:
|
5 metric tons
|
|
Price:
|
negotiation
|
|
Payment Terms:
|
T/T or LC
|
|
Supply Ability:
|
50,000 mt per year
|
|
Delivery Time:
|
30 working days after received your down payment
|
|
Packaging Details:
|
Standard export packaging
|
Company Introduction:
Trumony Aluminum Co.LTD build from 2006, hae export over 53 countries of worldwide. Our main products are aluminum alloy cladding material and other aluminum products like aluminum coil, aluminum foil, aluminum strip, aluminum pipe, aluminum tube etc, for aluminum battery cooling pad for electronic vertical, automobile heat exchangers such as radiator, intercooler, condenser, evaporator and industrial heat exchangers, like electricity power radiator, air conditioner etc.There are complete sets of modern machinery and equipment operation workshops for casting, hot rolling, cold rolling, finishing and advanced check-out equipments for researching and testing,such as WDW-3010- micro-controlled electronic universal testing machine,CALS-2000 aluminum alloy metallographic image analysis system,etc.
