Product Description

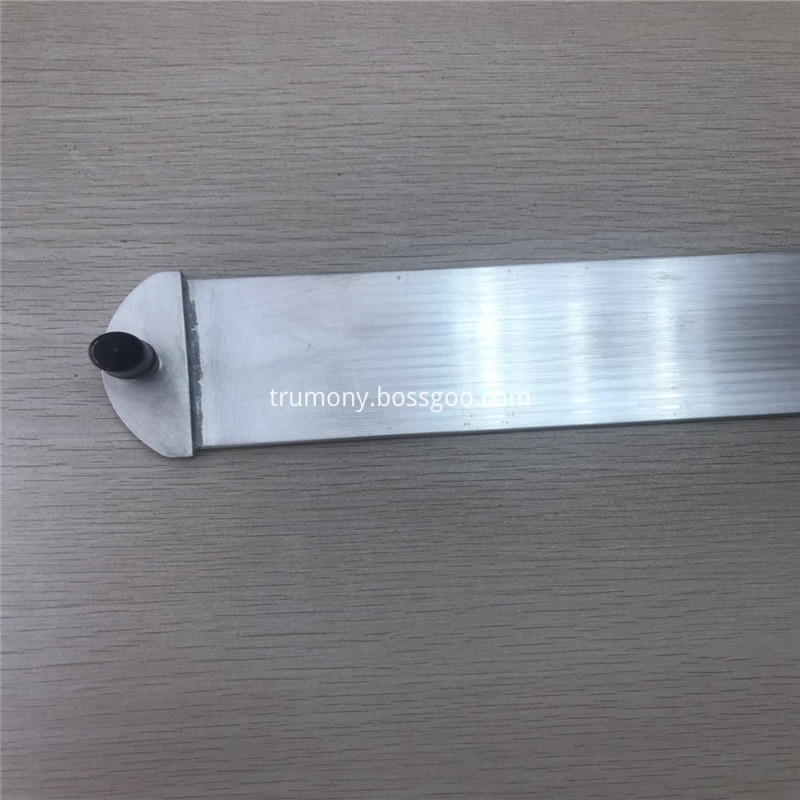

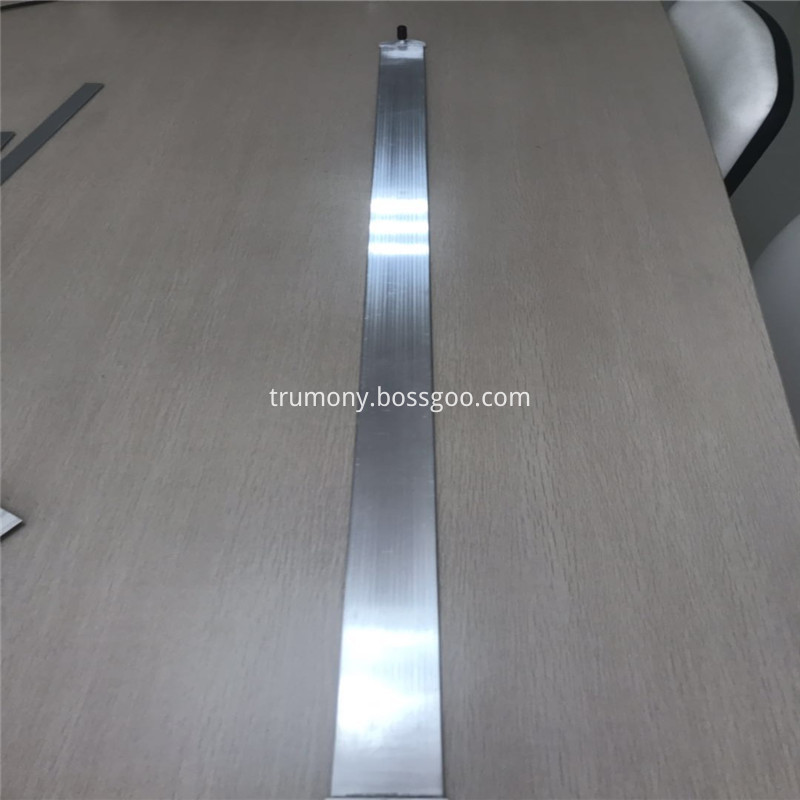

Micro channel oval aluminum tube with connector
Company Introduction:
Trumony Aluminum Co.LTD build from 2006, have export over 53 countries of worldwide. Our main products are aluminum alloy cladding material, core material and other aluminum products like aluminum coil, aluminum foil, aluminum strip, aluminum radiator tube for vehicle, aluminum pipe, aluminum tube, flat aluminum micro channel tube etc, for automobile heat exchangers area such as radiator, intercooler, condenser, evaporator and industrial heat exchangers, like electricity power radiator, air conditioner etc.There are complete sets of modern production and testing equipment operation workshops for casting, hot rolling, cold rolling, finishing and advanced check-out for researching and testing,such as WDW-3010- micro-controlled electronic universal testing machine,CALS-2000 aluminum alloy metallographic image analysis system etc.
1.Application:
1) Car, air conditioner, water cooling for heat sink
2) In the field of commercial:
such as household air conditioner, condenser, evaporator, fridge, oil cooler and inter cooler
2.Alloy States:
1) 1000 series:1050, 1060 etc
2) 3000 series: 3003 etc
3) 4000 series: 4043 etc
3.Temper: O/F/H111/H112 etc
4.Mechanical Properties of Micro channel oval aluminum tube with connector for heat exchange
|
No.
|
Alloy
|
Temper
|
Tensile Strength(Mpa)
|
Yield Strength(Mpa)
|
Elogation(%)
|
|
1
|
1050
|
O/F/H111/H112
|
≥ 65
|
≥ 20
|
≥ 25
|
|
2
|
1100
|
O/F/H111/H112
|
≥ 75
|
≥ 20
|
≥ 25
|
|
3
|
1197
|
O/F/H111/H112
|
≥ 80
|
≥ 25
|
≥ 20
|
|
4
|
3102
|
O/F/H111/H112
|
≥ 75
|
≥ 20
|
≥ 25
|
|
5
|
3R03
|
O/F/H111/H112
|
≥ 80
|
≥ 25
|
≥ 20
|
5.Chemical Composition
|
No.
|
Alloy
|
Si
|
Fe
|
Cu
|
Mn
|
Mg
|
Cr
|
Zn
|
V
|
Ti
|
|
1
|
1050
|
≤ 0.25
|
≤ 0.40
|
≤ 0.05
|
≤ 0.05
|
≤ 0.05
|
-
|
≤ 0.05
|
≤ 0.05
|
≤ 0.03
|
|
2
|
1100
|
≤ 0.95(Fe+Si)
|
0.05-0.20
|
≤ 0.05
|
-
|
-
|
≤ 0.10
|
-
|
-
|
|
3
|
1197
|
≤ 0.15
|
≤ 0.20
|
0.40-0.55
|
0.10-0.20
|
≤ 0.03
|
≤ 0.05
|
≤ 0.05
|
≤ 0.05
|
≤ 0.05
|
|
4
|
3102
|
≤ 0.40
|
≤ 0.70
|
≤ 0.10
|
0.05-0.40
|
-
|
-
|
≤ 0.30
|
-
|
≤ 0.10
|
|
5
|
3R03
|
≤ 0.15
|
≤ 0.15
|
≤ 0.01
|
0.90-1.10
|
≤ 0.03
|
≤ 0.03
|
≤ 0.05
|
≤ 0.05
|
≤ 0.05
|
6. Size Tolerance
|
Width
|
Thickness
|
Wall Thickness
|
Length
|
Lateral Curvature
|
Frontal Curvature
|
Twsiting Dgree
|
|
± 0.05mm
|
± 0.03mm
|
± 0.05mm
|
± 0.03mm
|
≤ L× 0.2%
|
≤ L× 0.25%
|
≤ L× 0.15%
|
7.Our products will be tested in strict standard before delivery, some data for your reference.
|
No
|
Products' Testing Name
|
Contents and requests
|
|
1
|
Corrosion Resistance
|
Salt spray test: ≥ 750 hours
|
|
2
|
Zn Coating Standards
|
6/8/10/13± 2g/square meter
|
|
3
|
Flux Cotaing Standards
|
10-15± 2g/square meter
|
8.Commercial terms
|
Minimum Order Quantity:
|
100pcs， less quantity can negotiate
|
|
Price:
|
negotiation
|
|
Payment Terms:
|
T/T or LC
|
|
Supply Ability:
|
1000,000 pcs per year
|
|
Delivery Time:
|
15-30 working days after received your down payment
|
|
Packaging Details:
|
Standard export packaging
|
Micro channel oval aluminum tube with connector is widely used for manufacturing of various kinds of heat exchangers:
Air conditioning
Engine cooling
Condensers
Evaporators
Radiators
Heater cores
Charge air coolers/intercoolers
Engine oil coolers/transmission oil coolers
Microchannel aluminum flat tube (also called "parallel flow aluminum flat tube") is a kind of is made of refined aluminum rods, by hot extrusion, after spraying zinc surface anti-corrosion treatment, porous sector thin-walled tubular material, mainly used in various kinds of cooling air conditioning system, as a carrier of new environmental protection refrigerant piping components, adopt new environmental protection system is a new generation of microchannel parallel flow the key materials of air conditioning heat exchanger.
Our advantage:
1. Since 2006, we have rich experience in this industry in China;
2. Good reputation in aluminum material industry;
3. We have our own development department for new material research;
4. Good experience and cooperation with big client in the world;
5. With Certificate ISO9001-2008;
6. High performance cost ratio;
7. Fast delivery time 15-30 days for flat aluminum micro channel tube;
8. Good communication skills, and good after sells service, and understandings for customers;
FAQ
1, Q: Are you manufacturer of Micro channel oval aluminum tube with connector for heat exchange?
A: Yes, we are established in 2006. As a manufacturer our customers are welcome to visit our factory.
2, Q: Do you accept customized orders?
A: Yes, we do. Your customized orders are always welcomed. Please kindly offer us your technical perfrmances or samples so that we can customize the products according to your preferences. About any further detail, please feel free to contact us.
3. Q: How can I get one quotation faster?
A: Pls offer details about your demands as more as possible,insulation thickness,over diameter,nominal voltage,working temperature,color,quantity,application,etc.
4. Q: If I can not offer above information,what should I do?
A: Try your best to offer more information,we will help you design suitable wires&cables.
5. Q: What is your company sample policy?
A: As one supplier,we see that sample is necessary for our both sides,our policy is to offer free sample as possible as we can,just one situation is exception,sample is with very complex structure,besides,we have no it in stock.
About sample shippment,you need to pay for the freight,usually freight collect by express.
6. Q: What is the lead time of sample?
A: There are several different situations:
Immediately when you need it if we have it in stock;
5~15 days if no stocked sample and the sample structure is not complex;
15~30 days if no stocked sample and the sample is with complex structure.
