Product Description

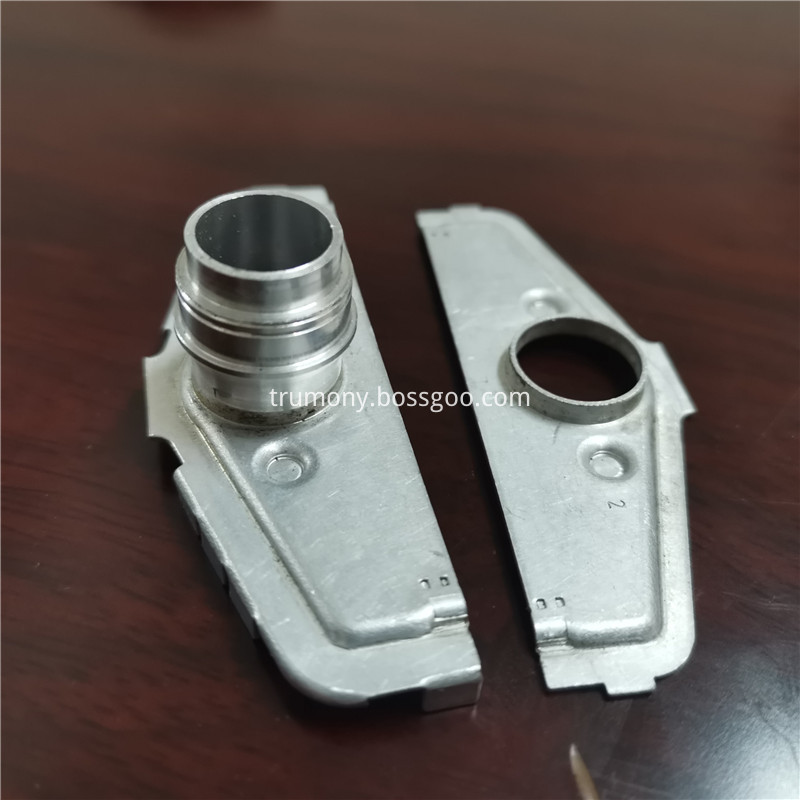

Brazing aluminum inlet and outlet for aluminum plate
The advantages of aluminum are 1. Good corrosion resistance. One of the characteristics of aluminum alloy is that when exposed to air, a dense oxide film will be formed on the surface. This film can prevent corrosion, so it has good corrosion resistance. If the “alumina film treatment method” is applied to it, corrosion can be completely prevented. 2. Good processing performance. The extrusion performance of the railway vehicle profile is good, and the secondary machining and bending are easier. 5. Easy to regenerate. Aluminum. It has a low melting point (660 ℃) and is easy to regenerate. It is also pollution-free during disposal, is conducive to environmental protection, and is in line with sustainable development strategies. Trumony supply good CNC Aluminum spare part, CNC Aluminum sheet, aluminum core panel, aluminum brazing foil, aluminum polishing sheet and so on..
Mechanical property of Brazing aluminum inlet and outlet for aluminum plate:
|
Alloy code
|
Temper
|
Tensile Strength Rm(Mpa)
|
Yield Strength Rp0.2(Mpa)
|
Elongation
|
|
TR010,TR020,TR030,TR040,TR050,TR110,TR310,
TR116,TR316,TR111,
TR313,TR121,TR131,
TR141,TR150,TR151,TR156 etc
|
O
|
95~135*
|
≥35*
|
≥15*
|
|
H14
|
140~185
|
≥125
|
≥1.5
|
|
H24
|
140~185
|
≥125
|
≥3
|
|
H16
|
185~225
|
≥160
|
≥1
|
|
H18
|
≥185
|
-
|
≥0.5
|
|
TR166 etc tube material
|
H24
|
185~235
|
≥150
|
≥8
|
|
TR116,TR316 etc tube material
|
H14
|
140~185
|
≥125
|
≥3
|
|
|
H24
|
140~185
|
≥125
|
≥8
|
Title goes here:
1) Material : Aluminum alloy
2) Temper:O/H12/H14/H16/H18/H32/H34/H36/H38//H111/H112/H116/H321/T6/T651/T3/T351 etc
3) Thickness: Customized
4) Width: Customized
5) Length: Customized
6) Application: Connector for aluminum water cooling plate of Heat exchanger/ heat sink for vehicle
Our advantage:
1. Since 2006, we have rich experience in this industry in China;
2. Good reputation in aluminum material industry;
3. We have our own development department for new material research;
4. Good experience and cooperation with big client in the world;
5. Design ability;
6. High performance cost ratio;
7. Fast delivery time: 10-30 days
8. Good communication skills, and good after sells service, and understandings for customers;
Company Introduction:
Trumony Aluminum Co.LTD build from 2006, have export over 53 countries of worldwide. Our main products are aluminum alloy cladding material, cole material and other aluminum products like aluminum sheet, aluminum plate, aluminum coil, 3003 aluminum water cooling plate for heat sink, aluminum foil, aluminum strip, aluminum pipe, aluminum tube, aluminum heat exchange etc, for automobile heat exchangers area such as radiator, intercooler, condenser, evaporator and industrial heat exchangers, like electricity power radiator, air conditioner etc.There are complete sets of modern production and testing equipment operation workshops for casting, hot rolling, cold rolling, coating finishing and advanced check-out for researching and testing,such as WDW-3010- micro-controlled electronic universal testing machine,CALS-2000 aluminum alloy metallographic image analysis system etc.
Trumony belief: Trust and Harmony
FAQ
1, Q: Are you manufacturer of Brazing aluminum inlet and outlet for aluminum plate?
A: Yes, we are established in 2006. As a manufacturer welcome to visit our factory.
2, Q: Do you accept customized orders?
A: Yes, we do. Your customized orders are always welcomed. Please kindly offer us your technical perfrmances or samples so that we can customize the products according to your preferences. About any further detail, please feel free to contact us.
3. Q: How can I get one quotation faster?
A: Pls offer details about your demands as more as possible,insulation thickness,over diameter,nominal voltage,working temperature,color,quantity,application,etc.
4. Q: If I can not offer above information,what should I do?
A: Try your best to offer more information,we will help you design suitable pipe & tubes.
