Product Description

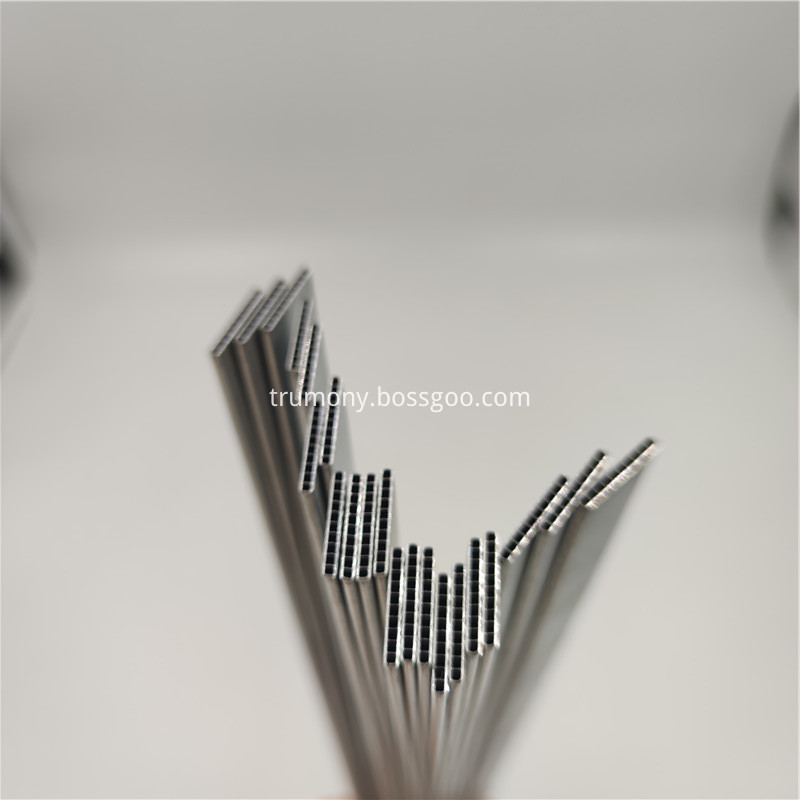

Auto Spare Parts Aluminum Micro Channel Multiport Tube
Which use R134A as the refrigerant in European Union and China successively in
The year of 1996 and 2002. With a development of more than ten years, it has
Become a mature technology.Beside increased global performances, an all-aluminum brazed heat exchanger using Micro Multi Port Extrusion (MPE) will also present better corrosion resistance. Micro Multi Port Extrusion (MPE) are primarily used for the following applications:
Condensers
Evaporators
Oil coolers
Radiators
Heater coresOur Aluminum Micro Channel Tube can be widely used for heat sink / transfer.
Like evaporator, air conditioner, condenser, heat exchanger, freezer, oven gas, boiler and so on.
The material can be 1050/1060/1070/3003/3102 or as customer's request.
Temper O-H112,H112,F.
We can do many kinds of sizes, such as 4.0x0.5mm, 6.0x1.0mm,7.0x1.0mm, 7.94x1.0mm,8x1.0mm,9.52x1.0mm,10x1.0mm,12.7x1.2mm,15.88x1.2mm,16.0x1.0mm, 9.05x1.5mm.The Micro Multi Port Extrusion (MPE) is a highly refined quality product and is charac-terised by the following properties:
-Low weight
-Excellent conductor of heat and electricity
-High corrosion resistance
-High recycling value
-High surface quality
-High pressure resistance.Micro-channel flat aluminum pipe with their large internal surface area, yield more efficient heat transfer and are therefore ideal for use in highly effective heat exchangers.Aluminum galvanized Micro Multi Port Extrusion （MPE） is the main component part
Of air-conditionings and the parallel flow evaporators and condensers of other
Refrigeration equipments.The micro-channel tube also called The Multi-Port Extrusion (MPE)- is a highly refined quality product characterized by the following properties:
Low energy costs
High performance
Low space and weight
High corrosion and pressure resistance
High recycling value
Pressure drop and silent solution
|
Mechanical property
|
|
Alloy Code
|
Temper
|
Tensile Strength Rm(Mpa)
|
Yield Strength(Mpa)
|
Elongation(%)
|
|
TR-010,TR-020,TR-030,TR-040TR-050,TR-110,TR-310,TR-116,TR-316,TR-111,TR-313,TR-121,TR-131,TR-141,TR-150,TR-151,TR-156Etc.
|
O
|
95-135*
|
≥35*
|
≥15*
|
|
H14
|
140-185
|
≥125
|
≥1.5
|
|
H24
|
140-185
|
≥125
|
≥3
|
|
H16
|
185-225
|
160
|
≥1
|
|
H18
|
≥185
|
--
|
≥0.5
|
|
TR-166Etc. Tube material
|
H24
|
185-235
|
≥150
|
≥8
|
|
TR-116,TR-316 Etc.tube material
|
H14
|
140-185
|
≥125
|
≥3
|
|
H24
|
140-185
|
≥125
|
≥8
|
|
OD
|
OD Tolerance
|
ID Tolerance
|
Roundness
|
straightness
|
Circular run-out
|
|
φ16-20
|
±0.02
|
±0.02
|
0.01↓
|
0.015↓
|
0.05↓
|
|
φ20-30
|
±0.02
|
±0.02
|
0.01↓
|
0.015↓
|
0.05↓
|
|
φ30-50
|
±0.05
|
±0.05
|
0.02↓
|
0.020↓
|
0.08↓
|
|
φ50-80
|
±0.15
|
±0.10
|
0.05↓
|
0.025↓
|
0.10↓
|
|
Mechanical Properties
|
|
No
|
Alloy
|
Temper
|
Tensile
strength
|
Yield
strength
|
Elongation
|
|
1
|
1050
|
O/F/H111/H112
|
≥ 65
|
≥ 20
|
≥ 25
|
|
2
|
1100
|
O/F/H111/H112
|
≥ 75
|
≥ 20
|
≥ 25
|
|
3
|
1197
|
O/F/H111/H112
|
≥ 80
|
≥ 25
|
≥ 20
|
|
4
|
3102
|
O/F/H111/H112
|
≥ 75
|
≥ 20
|
≥ 25
|
|
5
|
3R03
|
O/F/H111/H112
|
≥ 80
|
≥ 25
|
≥ 20
|
Company Introduction:
Trumony Aluminum Co.LTD build from 2006, have export over 53 countries of worldwide. Our main products are aluminum alloy cladding material, cole material and other aluminum products like aluminum sheet, aluminum plate, aluminum coil, aluminum foil, 6101 T63 High Conductivity Aluminum Conduction Plates, aluminum strip, aluminum pipe, aluminum tube, aluminum heat exchange etc, for automobile heat exchangers area such as radiator, intercooler, condenser, evaporator and industrial heat exchangers, like electricity power radiator, air conditioner etc.There are complete sets of modern production and testing equipment operation workshops for casting, hot rolling, cold rolling, coating finishing and advanced check-out for researching and testing,such as WDW-3010- micro-controlled electronic universal testing machine,CALS-2000 aluminum alloy metallographic image analysis system etc.
