Aluminum Side Bar For Automobile Radiators

Unit Price: USD 50.0000 - 500.0000 / Piece/Pieces
Payment Type: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Piece/Pieces
Delivery Time: 25 Days

Basic Info

Model No.: Tr

Additional Info

Packaging: Ply-wood box specialized for export

Productivity: 100000 pcs per month

Brand: Trumony

Transportation: Ocean,Air

Place of Origin: China

Supply Ability: 1000000 pcs per year

Certificate: IATF

HS Code: 7616

Port: Shanghai Port

Product Description

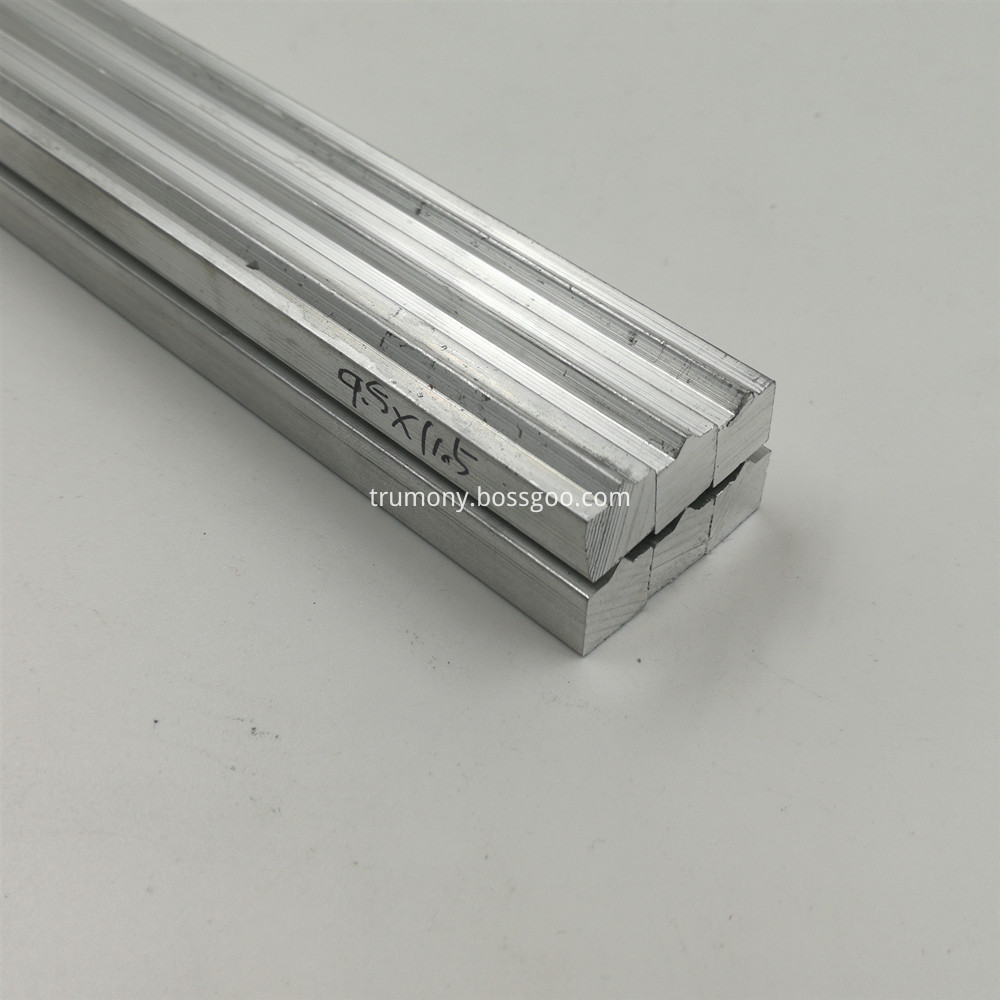

Aluminum Side Bar For Automobile Radiators

Product Description of Aluminum Square Pipe:
1.Alloy/Temper:3003-F

2.Specifications:

Seal-A
Height x Width(mm)
Seal-B
Height x Width(mm)
Seal-C
Height x Width(mm)
Seal-D
Height x Width(mm)
3x6;
3x8;
3.8x6;
3.8x8;
3.18x8;
10.3x20;
9.53x10.16;
7.6x10.16
4.7x6;
4.7x6.5;
4.7x8;
4.7x10;
6.5x10;
8x10;
6.5x12;
7x10;
9.5x10;
9.5x20;
10.3x10;
10.3x12;
11.5x10;
2.5x6;
3.8x6;
3x6;
3x4.5;
3.18x4.32;
3.5x6;
2x4.5;
2x4.8;
1.6x7.3;
2x7.3;
3.8x8;
4.7x6.5;
4.7x12;
6.35x5.34;
6.5x5.3;
6.5x6;
6.5x6.5;
6x6.5;
9.2x11.5;
9.5x11.5;
10.3x11.5;
10.3x6.5;
10.3x16.5;

3.Chemical composition of Aluminum Extrusion Pipe

Element Si Fe Cu Mn Mg Cr Zn Bi Zr Ti Al
Max 0.6 0.7 0.20 1.5 - - 0.10 - - - Rem
Min - - 0.05 1.0 - - - - - - -

4.Mechanical property of Extruded Aluminum Pipe

Properties Rp0.2(MPa)
Rm(MPa)
A50(%)
Max - - -
Min 35 95 14

5.Main production process aluminum pipe/tube

Billet--Casting blank preheating--Casting blank extruding--Extrusion molding--Cross transfer conveyor--Cooling and inspection--Straightening and inspection--Sizing and cutting and inspection----Burring--Shorter tubes straightening--Final inspection--Warehouse


Company Introduction:

Trumony Aluminum Co.LTD build from 2006, have export over 53 countries of worldwide. Our main products are aluminum alloy cladding material, cole material and other aluminum products like aluminum sheet, aluminum plate, aluminum coil, aluminum foil, aluminum strip, aluminum pipe, aluminum tube, aluminum mirror pane, aluminum heat exchange etc, for automobile heat exchangers area such as radiator, inter cooler, condenser, evaporator and industrial heat exchangers, like electricity power radiator, air conditioner etc.There are complete sets of modern production and testing equipment operation workshops for casting, hot rolling, cold rolling, coating finishing and advanced check-out for researching and testing,such as WDW-3010- micro-controlled electronic universal testing machine,CALS-2000 aluminum alloy metallographic image analysis system etc.



aluminum seal bar
