Product Description

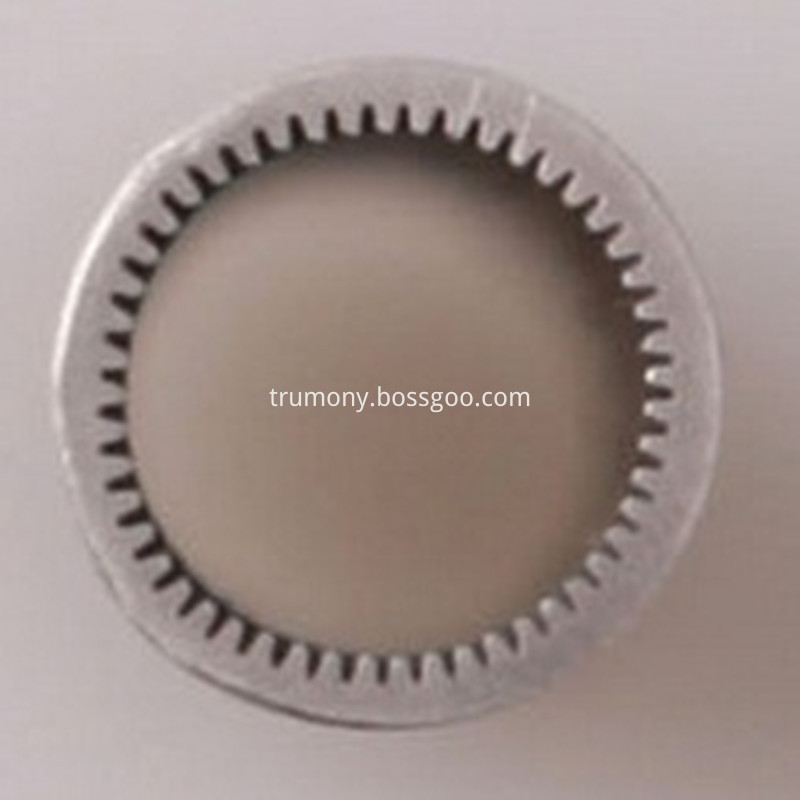

Product name: 3003 / 3103 Internally Enhanced Round Tube / Aluminum Inner Grooved Tube
Product Description:
The Aluminum Inner Grooved Tube is following a helical pattern and have been optimized to improve heat transfer. The improvement in heat transfer coefficient of the tube is two times what can be achieved with traditional smooth bore tubes3. This increased efficiency can help achieve a more compact design of the heat exchangers and a reduction in refrigerant load. different grooves depth and geometry satisfy the specific regional requirements and refrigerants in use.
|
Specification
|
bottom wall thickness
|
Tooth height
|
Tooth number
|
Helix Angle
|
Rib-top Angle
|
g/m
|
|
φ7mm
|
0.4-0.5
|
0.05-0.18
|
40-50
|
18°
|
50°
|
28+/-3
|
|
φ9.52mm
|
0.45-0.55
|
0.05-0.18
|
45-55
|
18°
|
50°
|
45+/-3
|
|
φ7.94mm
|
0.4-0.5
|
0.05-0.18
|
40-50
|
18°
|
50°
|
40+/-3
|
The parameters in above form can also be adjusted as per customer's request.
Mechanical property:
Tensile:120MPa min
Elongation:35% min
Expanding:40% min
Density:2.7
Application:Air-conditioner heat exchanger system
Product feature:
1. Light-weight
2. Good thermal conductivity properties and electrical conductivity
3. Good corrosion resistance
4. Good forming and bending properties
5. High recycling value
6. Small deviation range
7. High surface quality
Company Introduction:
Trumony Aluminum Co.LTD build from 2006, hae export over 53 countries of worldwide. Our main products are aluminum alloy cladding material and other aluminum products like aluminum coil, aluminum foil, aluminum strip, aluminum pipe, aluminum tube etc, for aluminum battery cooling pad for electronic vertical, automobile heat exchangers such as radiator, intercooler, condenser, evaporator and industrial heat exchangers, like electricity power radiator, air conditioner etc.There are complete sets of modern machinery and equipment operation workshops for casting, hot rolling, cold rolling, finishing and advanced check-out equipments for researching and testing,such as WDW-3010- micro-controlled electronic universal testing machine,CALS-2000 aluminum alloy metallographic image analysis system,etc.
