Product Description

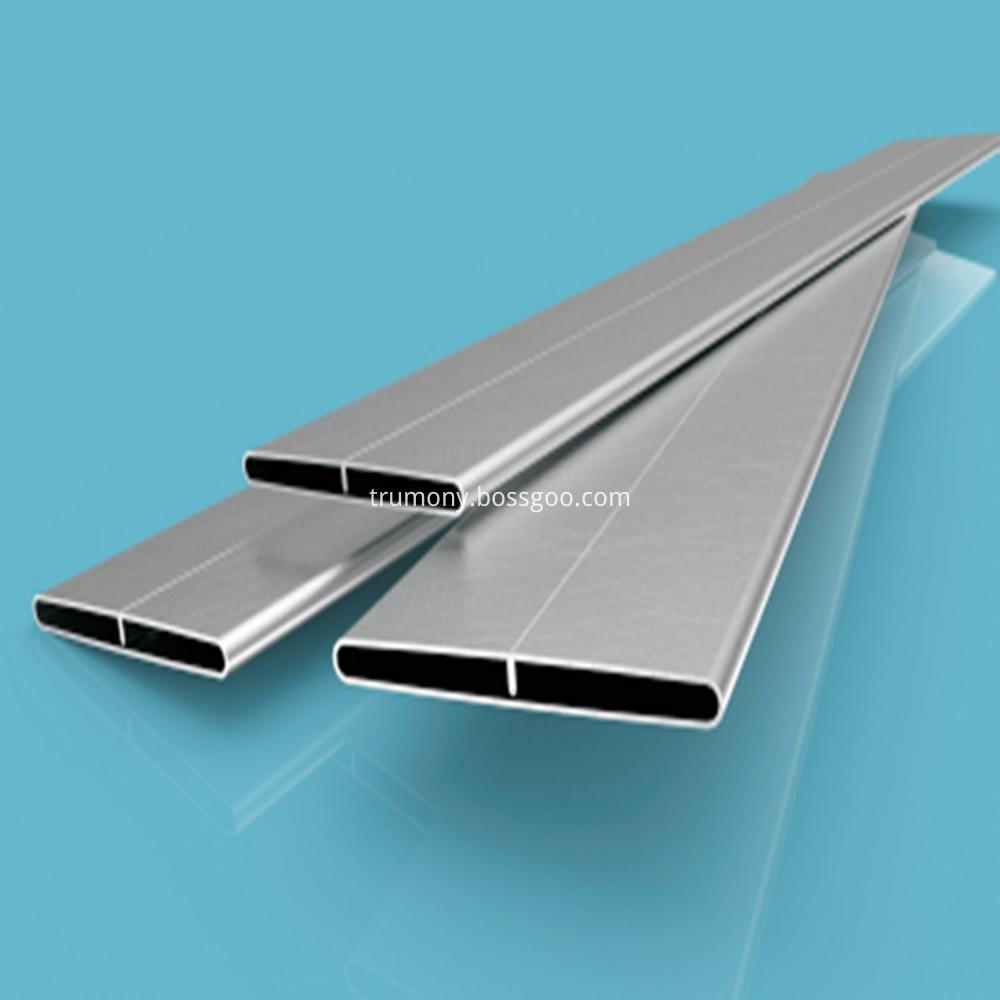

3000 Series Aluminium Extruded Profiles High Frequency B Type Radiator Tube For Car
In addtion, our company can supply below tubes:
Aluminum Brazing Pipe,Aluminum High Frequency Welding Pipe,Aluminum Mirco-channel Tube,Aluminum Manifold Tube,Aluminum Extrusion Pipe,Aluminum Fiber Tube etc.
1.Application:
Radiator for vehicle&car&off-road widely use this kind of HF B-Type Tube.
2.Alloy states:
Raw material: as request,general material:
4343/3003/4343;4343/3005/4343
3.Thickness Range:
0.22-0.3mm
4.Common Tube Specification:
|
No.
|
Description
|
Specification(W*H*T)mm
|
Specification(W*H*T)mm
|
Specification(W*H*T)mm
|
|
1
|
HF B-Type Tube
|
16*2.0*0.22
|
16*2.0*0.25
|
|
|
2
|
HF B-Type Tube
|
22*2.0*0.23
|
22*2.0*0.25
|
|
|
3
|
HF B-Type Tube
|
26*2.0*0.23
|
26*2.0*0.25
|
26*2.0*0.26
|
|
4
|
HF B-Type Tube
|
32*2.0*0.23
|
32*2.0*0.25
|
32*2.0*0.3
|
|
5
|
HF B-Type Tube
|
40*2.0*0.35
|
|
|
|
6
|
HF B-Type Tube
|
52*1.8*0.35
|
52*1.8*0.4
|
|
|
7
|

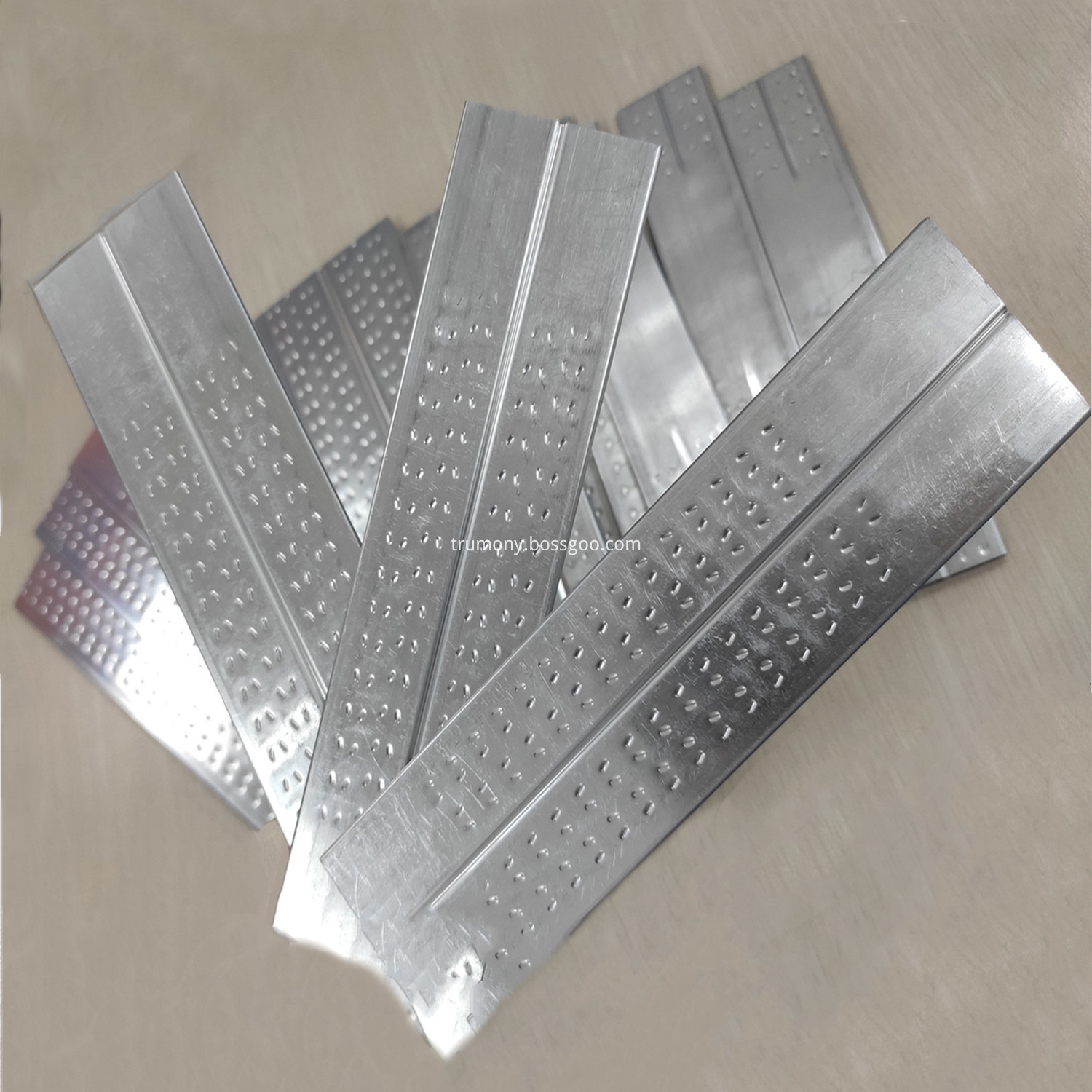

Dimple HF B-Type Tube
|
56*1.6*0.30
|
|
|
5.Commercial terms
|
Minimum Order Quantity:
|
5 metric tons
|
|
Price:
|
negotiation
|
|
Payment Terms:
|
T/T or LC
|
|
Supply Ability:
|
50,000 mt per year
|
|
Delivery Time:
|
30 working days after received your down payment
|
|
Packaging Details:
|
Standard export packaging
|
FAQ
1, Q: Are you manufacturer of aluminum micro channel tube?
A: Yes, we are established in 2003. As a manufacturer our customers are welcome to visit our factory.
2, Q: Do you accept customized orders?
A: Yes, we do. Your customized orders are always welcomed. Please kindly offer us your technical perfrmances or samples so that we can customize the products according to your preferences. About any further detail, please feel free to contact us.
3. Q: How can I get one quotation faster?
A: Pls offer details about your demands as more as possible,insulation thickness,over diameter,nominal voltage,working temperature,color,quantity,application,etc.
4. Q: If I can not offer above information,what should I do?
A: Try your best to offer more information,we will help you design suitable wires&cables.
5. Q: What is your company sample policy?
A: As one supplier,we see that sample is necessary for our both sides,our policy is to offer free sample as possible as we can,just one situation is exception,sample is with very complex structure,besides,we have no it in stock.
About sample shippment,you need to pay for the freight,usually freight collect by express.
6. Q: What is the lead time of sample?
A: There are several different situations:
Immediately when you need it if we have it in stock;
1~2days if no stocked sample and the sample structure is not complex;
3~5days if no stocked sample and the sample is with complex structure.
