Product Description

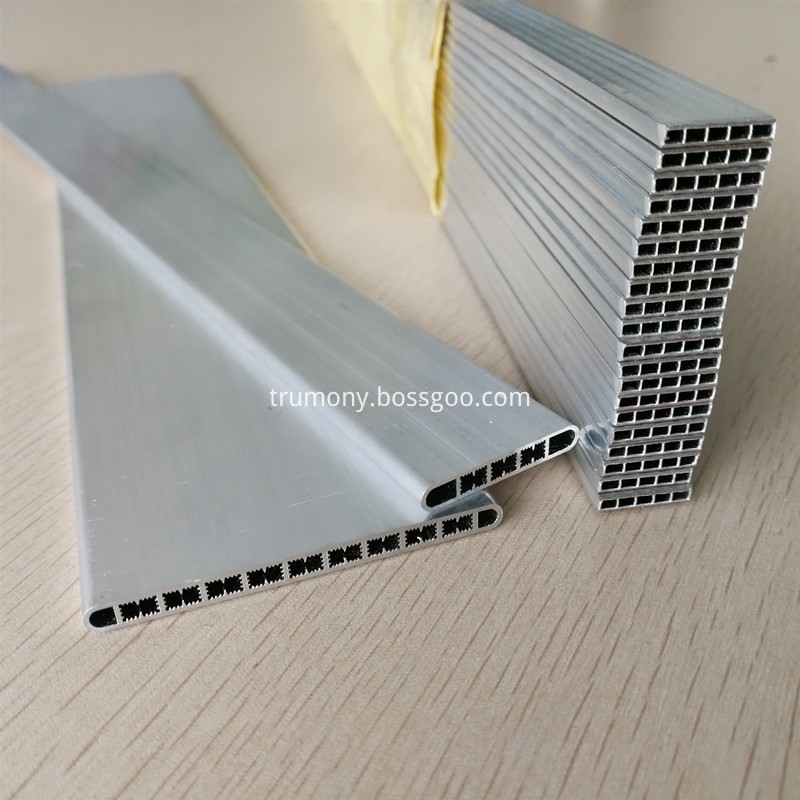

3003 / 3102 Aluminum Micro-channel Tube For Automobile CAC
We are supplying the 3003/3102 H112 micro-channel aluminum tube and also the wide extruded aluminum tube for automobile heat exchangers.The tube width can be more than 100mm.
Product Description:
Aluminum flat tube is an important spare part for auto radiators/condensers/evaporators/charge air coolers. Good quality aluminum flat oval tubes can protect auto engine, as it ensure your radiator with high efficient cooling performance.
Multiport Extruded Aluminum Tube(MPE)- which is used for automobile air conditioner condenser has larger internal section area, better effectiveness for heat transfer. At the same time, has the following properties:
1. Lower energy costs
2. Higher performance
3. Less space and weight
4. High corrosion and pressure resistance
5. High recycling value
6. Pressure drop and silent solution
Beside increased global performances, an all-aluminium brazed heat exchanger using MPE will also present better corrosion resistance. MPEs are primarily used for the following applications:
Condensers
Evaporators
Oil coolers
Radiators
Heater cores
Multiport Extruded Aluminum Tube are available in various sizes and alloys, ensuring the best properties for the purpose required.
Dimensions: Designed to customer specification
Package: Coils or Straight with fixed length
Surface Treatment : Zinc spray / without Zinc spray
|
No.
|
Alloy
|
Si
|
Fe
|
Cu
|
Mn
|
Mg
|
Cr
|
Zn
|
V
|
Ti
|
|
1
|
1050
|
≤0.25
|
≤0.40
|
≤0.05
|
≤0.05
|
≤0.05
|
---
|
≤0.05
|
≤0.05
|
≤0.03
|
|
2
|
1100
|
≤0.95(Si+Fe)
|
0.05-0.20
|
≤0.05
|
---
|
---
|
≤0.10
|
---
|
---
|
|
3
|
3102
|
≤0.40
|
≤0.70
|
≤0.10
|
0.05-0.40
|
---
|
---
|
≤0.30
|
---
|
≤0.10
|
|
4
|
3003
|
≤0.15
|
≤0.15
|
≤0.01
|
0.90-1.10
|
≤0.03
|
≤0.03
|
≤0.05
|
≤0.05
|
≤0.05
|
Supply state and mechanical properties
|
Alloy
|
Temper
|
Tensile Strength
|
Yield Strength
|
Elongation
|
|
1050
|
O/F/H111/H112
|
≥65MPa
|
≥20MPa
|
≥25%
|
|
1100
|
O/F/H111/H112
|
≥75MPa
|
≥20MPa
|
≥25%
|
|
3102
|
O/F/H111/H112
|
≥75MPa
|
≥20MPa
|
≥25%
|
|
3003
|
O/F/H111/H112
|
≥75MPa
|
≥20MPa
|
≥25%
|
Company Introduction:
Trumony Aluminum Co.LTD build from 2006, hae export over 53 countries of worldwide. Our main products are aluminum alloy cladding material and other aluminum products like aluminum coil, aluminum foil, aluminum strip, aluminum pipe, aluminum tube etc, for aluminum battery cooling pad for electronic vertical, automobile heat exchangers such as radiator, intercooler, condenser, evaporator and industrial heat exchangers, like electricity power radiator, air conditioner etc.There are complete sets of modern machinery and equipment operation workshops for casting, hot rolling, cold rolling, finishing and advanced check-out equipments for researching and testing,such as WDW-3010- micro-controlled electronic universal testing machine,CALS-2000 aluminum alloy metallographic image analysis system,etc.
