3102 Aluminum Tube Extrusions For Automobile Condensers

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Metric Ton
Delivery Time: 30 Days

Additional Info

Packaging: Ply-wood box specialized for export

Productivity: 100000 ton/year

Brand: Trumony

Transportation: Ocean,Air

Place of Origin: China

Supply Ability: 100000 ton/year

Certificate: IATF

HS Code: 7604

Port: Shanghai Port

Product Description

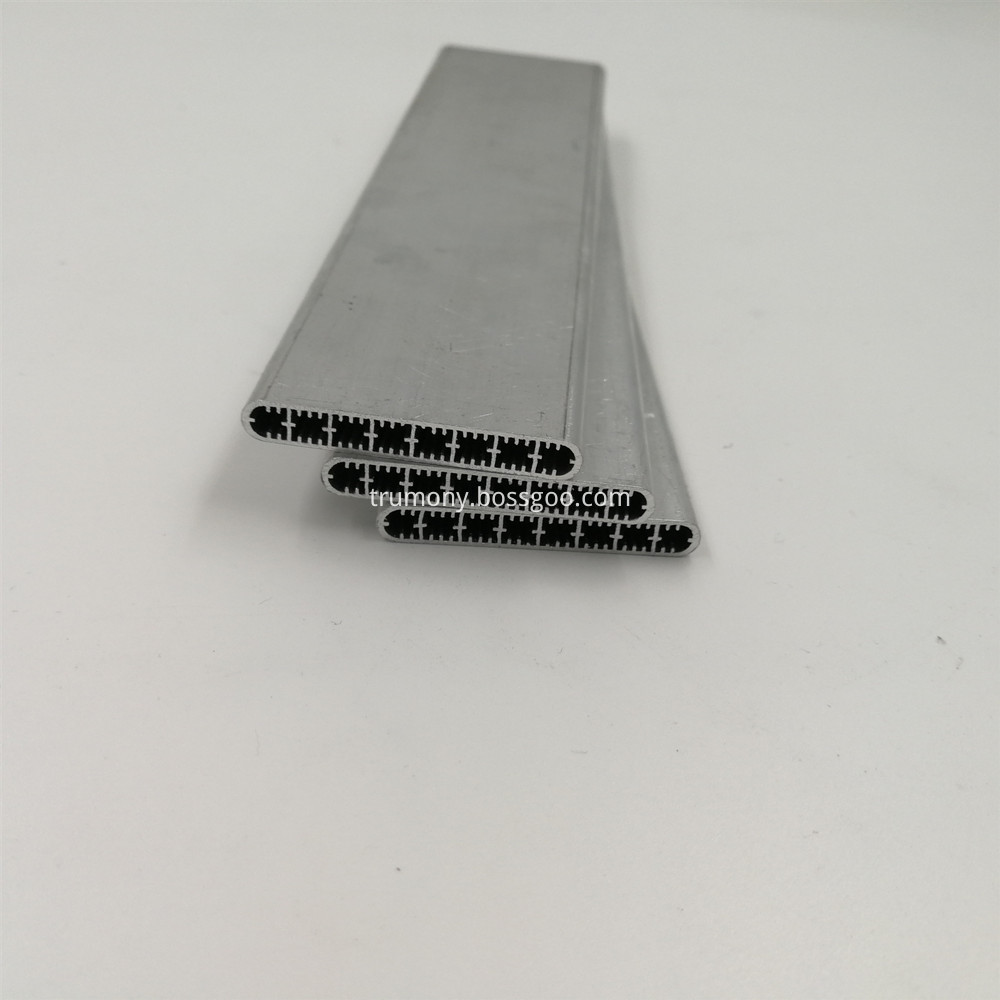

Product name: 3102 Aluminum Tube Extrusions For Automobile Condensers



Aluminum Tube Extrusion is the high-tech aluminum product under the process of hot extrusion from refined aluminum ingot and then zinc spraying for anti-corrosion.

Our Aluminum Tube Extrusion is the core material of new generation parallel flow air conditioning heat exchangers.It is outstanding environment-friendly,efficient,energy-saving and cost reduction and was approved vividly in automobile air conditioning system.With restriction and prohibition of the application of the traditional refrigerant,it is a trend that household and commercial air conditioning heat exchanger needs revolution.Our Aluminum Tube Extrusion will play an important role in this field.


Commonly used material chemical composition

No. Alloy Si Fe Cu Mn Mg Cr Zn V Ti
1 1050 ≤0.25 ≤0.40 ≤0.05 ≤0.05 ≤0.05 --- ≤0.05 ≤0.05 ≤0.03
2 1100 ≤0.95(Si+Fe) 0.05-0.20 ≤0.05 --- --- ≤0.10 --- ---
3 3102 ≤0.40 ≤0.70 ≤0.10 0.05-0.40 --- --- ≤0.30 --- ≤0.10
4 3003 ≤0.15 ≤0.15 ≤0.01 0.90-1.10 ≤0.03 ≤0.03 ≤0.05 ≤0.05 ≤0.05

Supply state and mechanical properties

Alloy Temper Tensile Strength Yield Strength Elongation
1050 O/F/H111/H112 ≥65MPa ≥20MPa ≥25%
1100 O/F/H111/H112 ≥75MPa ≥20MPa ≥25%
3102 O/F/H111/H112 ≥75MPa ≥20MPa ≥25%
3003 O/F/H111/H112 ≥75MPa ≥20MPa ≥25%


Beside increased global performances, an all-aluminium brazed heat exchanger using Aluminum Tube Extrusion will also present better corrosion resistance. Aluminum Tube Extrusions are primarily used for the following applications:


Condensers
Evaporators

Oil coolers

Radiators
Heater cores


Aluminum Tube Extrusions are available in various sizes and alloys, ensuring the best properties for the purpose required.

Dimensions: Designed to customer specification

Package: coils or Straight with fixed length

Surface Treatment : Zinc spray / without Zinc spray

aluminum extruded tube


Company Introduction:

Trumony Aluminum Co.LTD build from 2006, hae export over 53 countries of worldwide. Our main products are aluminum alloy cladding material and other aluminum products like aluminum coil, aluminum foil, aluminum strip, aluminum pipe, aluminum tube etc, for aluminum battery cooling pad for electronic vertical, automobile heat exchangers such as radiator, intercooler, condenser, evaporator and industrial heat exchangers, like electricity power radiator, air conditioner etc.There are complete sets of modern machinery and equipment operation workshops for casting, hot rolling, cold rolling, finishing and advanced check-out equipments for researching and testing,such as WDW-3010- micro-controlled electronic universal testing machine,CALS-2000 aluminum alloy metallographic image analysis system,etc.
