Product Description

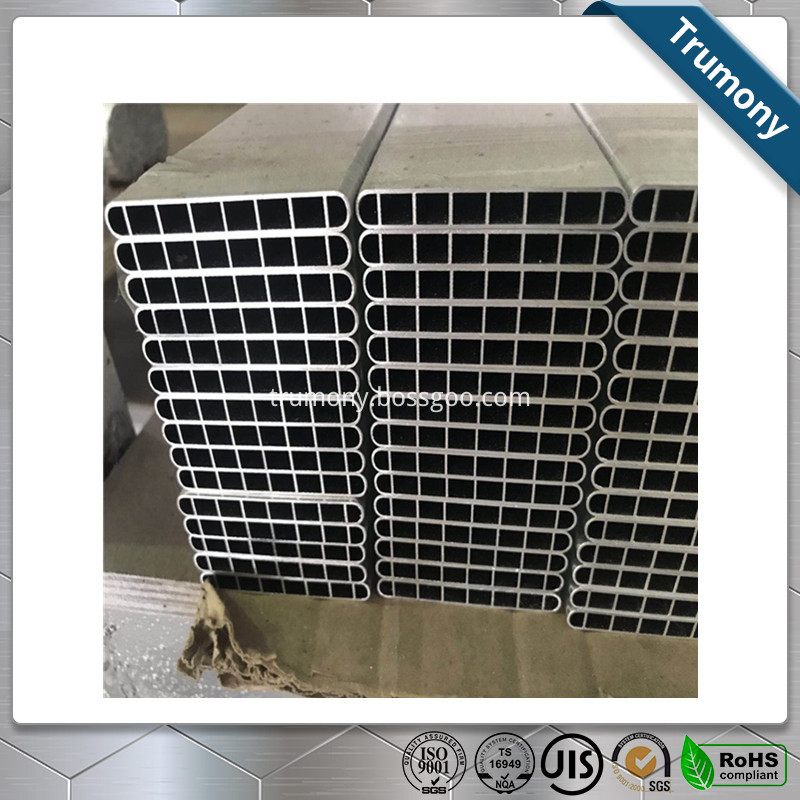

3003 Extrusion Micro Channel Aluminum Flat Tube
The product has strong Promotion potential. Micro-channel heat exchanger technology has the potential to be promoted to air-energy water heaters in the field of air-conditioning manufacturing, which can greatly enhance the competitiveness of products and the ability of sustainable development of enterprises.Compared with conventional heat exchangers, micro-channel heat exchangers are not only small in size, large in heat transfer coefficient, high in heat exchange efficiency, which can meet higher energy efficiency standards, but also have excellent pressure resistance. CO2 can be used as a working fluid for refrigeration. Environmental protection requirements have attracted widespread attention from academic and industrial circles at home and abroad. At present, the key technology of microchannel heat exchanger-the production method of microchannel parallel flow tube has gradually matured in China, which makes the large-scale use of microchannel heat exchanger possible. We provide aluminum embossed sheet, aluminum extrusion sheet, aluminum micro channel tube, aluminum high frequency welding pipe, aluminum heat pipe and so on.
Company Introduction:
Trumony Aluminum Co.LTD build from 2006, have export over 53 countries of worldwide. Our main products are aluminum alloy cladding material, core material and other aluminum products like aluminum coil, aluminum foil, aluminum strip, aluminum radiator tube for vehicle, aluminum pipe, aluminum tube, flat aluminum micro channel tube etc, for automobile heat exchangers area such as radiator, intercooler, condenser, evaporator and industrial heat exchangers, like electricity power radiator, air conditioner etc.There are complete sets of modern production and testing equipment operation workshops for casting, hot rolling, cold rolling, finishing and advanced check-out for researching and testing,such as WDW-3010- micro-controlled electronic universal testing machine,CALS-2000 aluminum alloy metallographic image analysis system etc.
1.Application:
1) Car, air conditioner, water cooling for heat sink
2) In the field of commercial:
such as household air conditioner, condenser, evaporator, fridge, oil cooler and inter cooler
2.Alloy States:
1) 1000 series:1050, 1100, 1197
2) 3000 series:3102, 3003
3) 4000 series: 4043 etc
3.Temper: O/F/H111/H112 etc
4.Mechanical Properties of flat aluminum micro channel tube
|
No.
|
Alloy
|
Temper
|
Tensile Strength(Mpa)
|
Yield Strength(Mpa)
|
Elogation(%)
|
|
1
|
1050
|
O/F/H111/H112
|
≥ 65
|
≥ 20
|
≥ 25
|
|
2
|
1100
|
O/F/H111/H112
|
≥ 75
|
≥ 20
|
≥ 25
|
|
3
|
1197
|
O/F/H111/H112
|
≥ 80
|
≥ 25
|
≥ 20
|
|
4
|
3102
|
O/F/H111/H112
|
≥ 75
|
≥ 20
|
≥ 25
|
|
5
|
3R03
|
O/F/H111/H112
|
≥ 80
|
≥ 25
|
≥ 20
|
5.Chemical Composition
|
No.
|
Alloy
|
Si
|
Fe
|
Cu
|
Mn
|
Mg
|
Cr
|
Zn
|
V
|
Ti
|
|
1
|
1050
|
≤ 0.25
|
≤ 0.40
|
≤ 0.05
|
≤ 0.05
|
≤ 0.05
|
-
|
≤ 0.05
|
≤ 0.05
|
≤ 0.03
|
|
2
|
1100
|
≤ 0.95(Fe+Si)
|
0.05-0.20
|
≤ 0.05
|
-
|
-
|
≤ 0.10
|
-
|
-
|
|
3
|
1197
|
≤ 0.15
|
≤ 0.20
|
0.40-0.55
|
0.10-0.20
|
≤ 0.03
|
≤ 0.05
|
≤ 0.05
|
≤ 0.05
|
≤ 0.05
|
|
4
|
3102
|
≤ 0.40
|
≤ 0.70
|
≤ 0.10
|
0.05-0.40
|
-
|
-
|
≤ 0.30
|
-
|
≤ 0.10
|
|
5
|
3R03
|
≤ 0.15
|
≤ 0.15
|
≤ 0.01
|
0.90-1.10
|
≤ 0.03
|
≤ 0.03
|
≤ 0.05
|
≤ 0.05
|
≤ 0.05
|
6. Size Tolerance
|
Width
|
Thickness
|
Wall Thickness
|
Length
|
Lateral Curvature
|
Frontal Curvature
|
Twsiting Dgree
|
|
± 0.05mm
|
± 0.03mm
|
± 0.05mm
|
± 0.03mm
|
≤ L× 0.2%
|
≤ L× 0.25%
|
≤ L× 0.15%
|
7.Our products will be tested in strict standard before delivery, some data for your reference.
|
No
|
Products' Testing Name
|
Contents and requests
|
|
1
|
Corrosion Resistance
|
Salt spray test: ≥ 750 hours
|
|
2
|
Zn Coating Standards
|
6/8/10/13± 2g/square meter
|
|
3
|
Flux Cotaing Standards
|
10-15± 2g/square meter
|
8.Commercial terms
|
Minimum Order Quantity:
|
100pcs， less quantity can negotiate
|
|
Price:
|
negotiation
|
|
Payment Terms:
|
T/T or LC
|
|
Supply Ability:
|
1000,000 pcs per year
|
|
Delivery Time:
|
15-30 working days after received your down payment
|
|
Packaging Details:
|
Standard export packaging
|
3003 Extrusion Micro Channel Aluminum Flat Tube is widely used for manufacturing of various kinds of heat exchangers:
Air conditioning
Engine cooling
Condensers
Evaporators
Radiators
Heater cores
Charge air coolers/intercoolers
Engine oil coolers/transmission oil coolers
Our advantage:
1. Since 2006, we have rich experience in this industry in China;
2. Good reputation in aluminum material industry;
3. We have our own development department for new material research;
4. Good experience and cooperation with big client in the world;
5. With Certificate ISO9001-2008;
6. High performance cost ratio;
7. Fast delivery time 15-30 days for flat aluminum micro channel tube;
8. Good communication skills, and good after sells service, and understandings for customers;
FAQ
1, Q: Are you manufacturer of 3003 mulitiport micro aluminum channel tube for heat sink?
A: Yes, we are established in 2006. As a manufacturer our customers are welcome to visit our factory.
2, Q: Do you accept customized orders?
A: Yes, we do. Your customized orders are always welcomed. Please kindly offer us your technical perfrmances or samples so that we can customize the products according to your preferences. About any further detail, please feel free to contact us.
3. Q: How can I get one quotation faster?
A: Pls offer details about your demands as more as possible,insulation thickness,over diameter,nominal voltage,working temperature,color,quantity,application,etc.
4. Q: If I can not offer above information,what should I do?
A: Try your best to offer more information,we will help you design suitable wires&cables.
5. Q: What is your company sample policy?
A: As one supplier,we see that sample is necessary for our both sides,our policy is to offer free sample as possible as we can,just one situation is exception,sample is with very complex structure,besides,we have no it in stock.
About sample shippment,you need to pay for the freight,usually freight collect by express.
6. Q: What is the lead time of sample?
A: There are several different situations:
Immediately when you need it if we have it in stock;
5~15 days if no stocked sample and the sample structure is not complex;
15~30 days if no stocked sample and the sample is with complex structure.
