Product Description

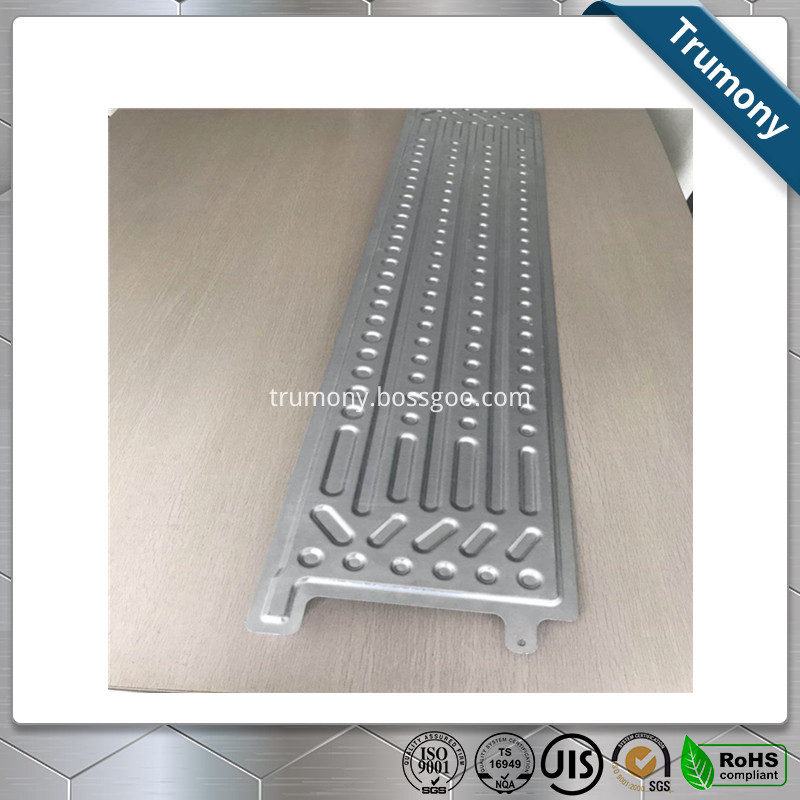

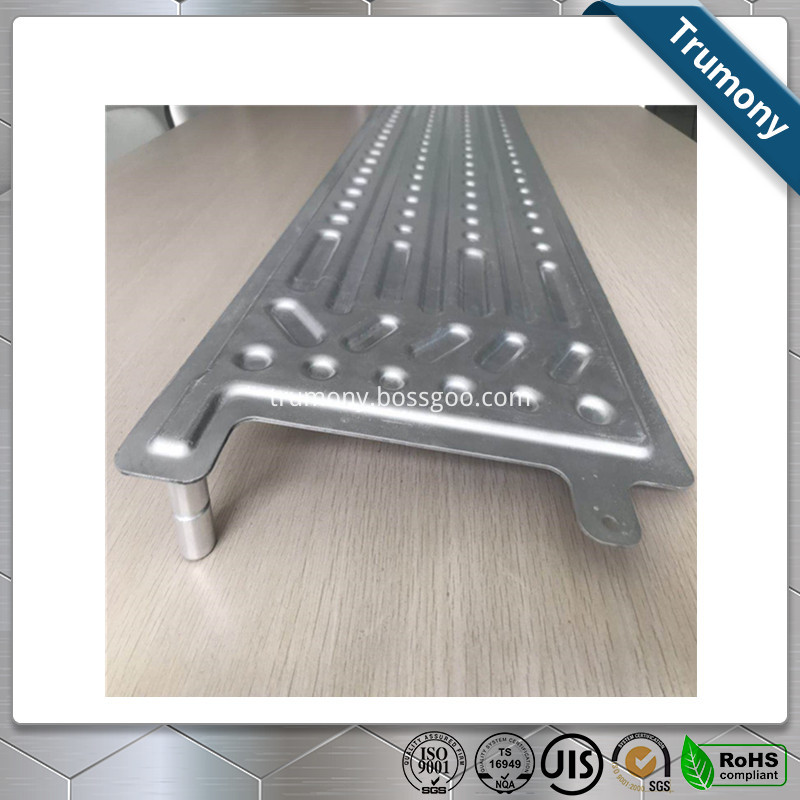

Product Name: 3003 brazing liquid cooling aluminum sheet for heat sink
1) Aluminum Alloy : 3003
2)Temper:O/H12/H14/H16/H18/H32/H34/H36/H38//H111/H112/H116/H321/T6/T651/T3/T351 etc
3) Thickness: 1-3mm
4) Width: 400mm, 800mm, or customized
5) Length: 900mm, 1300mm, or customized
6) Application: Heat exchanger/ heat sink for battery cooling, LED cooling etc
7) Technical:Brazing
Mechanical property of 3003 aluminum liquid cooling sheet for heat sink:
|
Alloy code
|
Temper
|
Tensile Strength Rm(Mpa)
|
Yield Strength Rp0.2(Mpa)
|
Elongation
|
|
TR010,TR020,TR030,TR040,TR050,TR110,TR310,
TR116,TR316,TR111,
TR313,TR121,TR131,
TR141,TR150,TR151,TR156 etc
|
O
|
95~135*
|
≥35*
|
≥15*
|
|
H14
|
140~185
|
≥125
|
≥1.5
|
|
H24
|
140~185
|
≥125
|
≥3
|
|
H16
|
185~225
|
≥160
|
≥1
|
|
H18
|
≥185
|
-
|
≥0.5
|
|
TR166 etc tube material
|
H24
|
185~235
|
≥150
|
≥8
|
|
TR116,TR316 etc tube material
|
H14
|
140~185
|
≥125
|
≥3
|
|
|
H24
|
140~185
|
≥125
|
≥8
|
Our advantage of liquid cooling aluminum sheet:
1. Since 2006, we have rich experience in this industry in China;
2. Good reputation in aluminum material industry;
3. We have our own development department for new material research;
4. Good experience and cooperation with big client in the world;
5. Design ability;
6. High performance cost ratio;
7. Fast delivery time:15-30 days
8. Good communication skills, and good after sells service, and understandings for customers;
Company Introduction:
Trumony Aluminum Co.LTD build from 2006, have export over 53 countries of worldwide. Our main products are aluminum alloy cladding material, and other aluminum products like aluminum sheet, aluminum plate, aluminum coil, 3003 aluminum water cooling sheet for heat sink, aluminum foil, aluminum strip, aluminum pipe, aluminum tube, aluminum heat exchange etc, for automobile heat exchangers area such as radiator, inter cooler, condenser, evaporator and industrial heat exchangers, like electricity power radiator, air conditioner etc.There are complete sets of modern production and testing equipment operation workshops for casting, hot rolling, cold rolling, coating finishing and advanced check-out for researching and testing,such as WDW-3010- micro-controlled electronic universal testing machine.
Trumony belief: Trust and Hamony
FAQ
1, Q: Are you manufacturer of 3003 Brazed aluminum liquid cooling sheet for heat sink?
A: Yes, we are established in 2006. As a manufacturer welcome to visit our factory.
2, Q: Do you accept customized orders?
A: Yes, we do. Your customized orders are always welcomed. Please kindly offer us your technical perfrmances or samples so that we can customize the products according to your preferences. About any further detail, please feel free to contact us.
3. Q: How can I get one quotation faster?
A: Pls offer details about your demands as more as possible,insulation thickness,over diameter,nominal voltage,working temperature,color,quantity,application,etc.
4. Q: If I can not offer above information,what should I do?
A: Try your best to offer more information,we will help you design suitable plate.
