Product Description

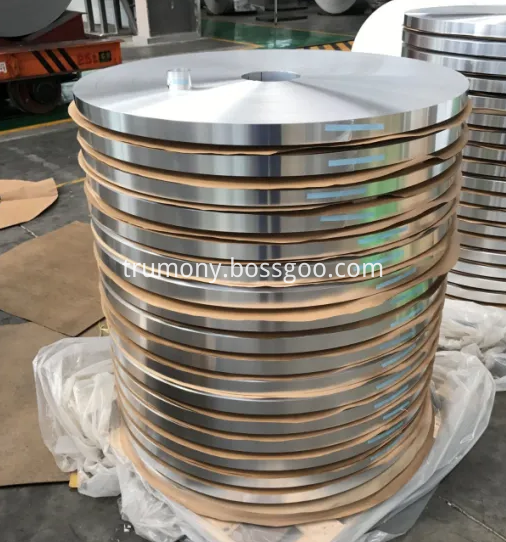

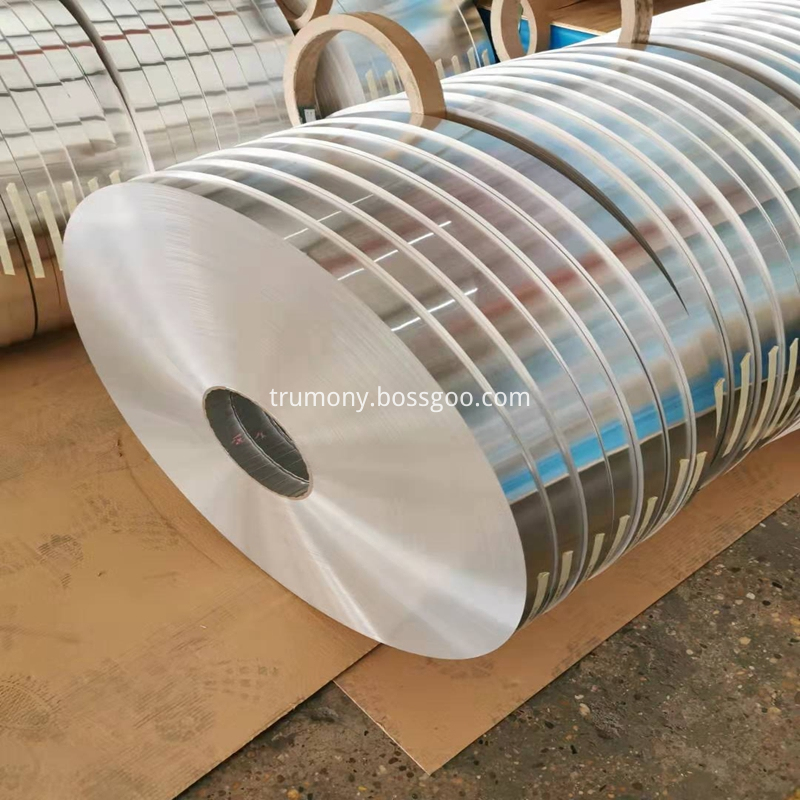

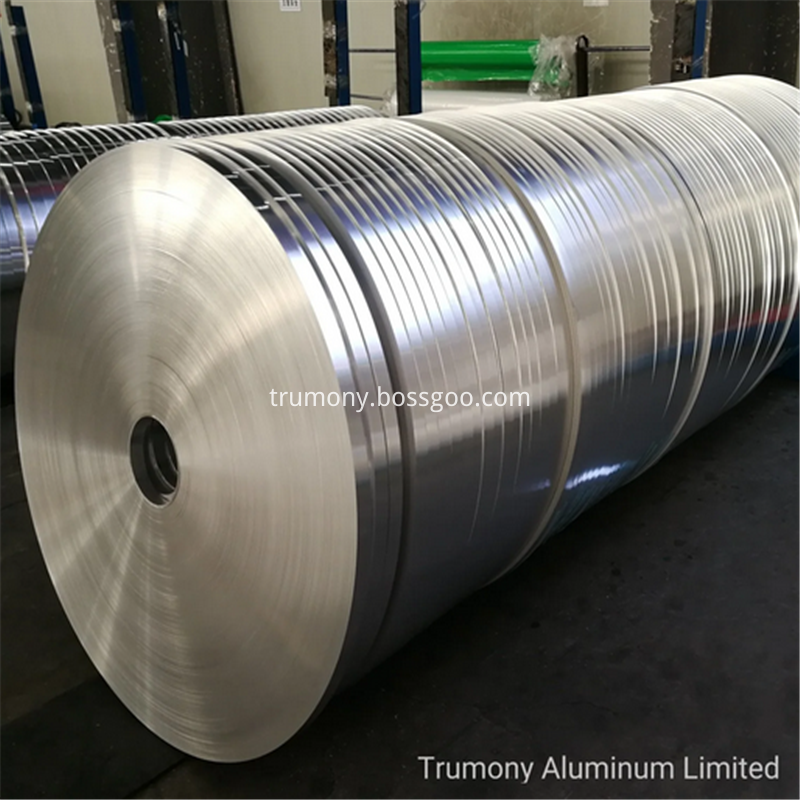

3003 4343 Aluminum brazing strip for fin stock
The raw materials of aluminum strip (Aluminium strip/Aluminum strip) are pure aluminum or aluminum alloy cast-rolled aluminum coils, hot-rolled aluminum coils, which are rolled into thin aluminum coils of different thicknesses and widths by a cold rolling mill. The machine slits longitudinally into aluminum strips of different widths. In spite of 3003 4343 aluminum brazing strips for fin stock, we also provide our clients various customized aluminum sheets、plates, etc.
Company Introduction:
Trumony Aluminum Co.LTD build from 2006, has exported to over 53 countries of worldwide. Our main products are aluminum alloy cladding material, coil material and other aluminum products like aluminum coil, aluminum foil, aluminum strip, aluminum pipe, aluminum tube etc, for automobile heat exchangers area such as radiator, intercooler, condenser, evaporator and industrial heat exchangers, like electricity power radiator, air conditioner etc.There are complete sets of modern production and testing equipment operation workshops for casting, hot rolling, cold rolling, finishing and advanced check-out for researching and testing,such as WDW-3010- micro-controlled electronic universal testing machine,CALS-2000 aluminum alloy metallographic image analysis system etc.
|
Aluminium coil/Aluminium Strip
|
|
Aluminium Alloy
|
Thickness (mm)
|
Width (mm)
|
Temper
|
|
A1050,A1050,A1070,A1100
|
0.2-500
|
20-2500
|
O,H12,H14,H16,H18,H22,H24,H26
|
|
A3003,A3004,A3105
|
0.2-500
|
20-2500
|
O,H12,H14,H16,H18,H22,H24,H26
|
|
A5052,A5005,A5083,A5754
|
0.2-500
|
20-2500
|
O,H12,H14,H34,H32,H36,H111,H112
|
|
A6061,A6082,A6063
|
0.2-500
|
20-2500
|
T4,T6,T651
|
|
A8011
|
0.2-500
|
20-2500
|
O,H12,H14,H16,H18,H22,H24,H26
|
|
Material process
|
both CC AND DC
|
|
Customerize size
|
Size can be produced as per clients requirement
|
|
Surface
|
Mill finish ,Color coated(PVDF& PE),Stucco Embossed ,Bright Polish ,Anodizing
|
|
Mirror,Brush,Perforated,Tread plate ,Corrugated etc
|
|
Quality Standard
|
ASTM B209,EN573-1
|
|
MOQ per size
|
2 tons
|
|
Payment Terms
|
TT OR LC
|
|
Delivery time
|
Within 25 days after receipt the lc or deposit
|
|
Material Quality
|
tension levelled,Free of defects like oil stain,Roll Marks,Waves,Dents, Scratch etc ,
|
|
A+++ quality
|
|
Application
|
Construction ,Building,ACP,Decoration ,Roofing,Mould,Ship Building,Lighting,
|
|
Aircraft,Oil Tank ,Truck Body,car body,TFT,
|
|
Packing
|
Standard export worthy wooden pallets,and standard packing is about 2.5 tons/pallet
|
|
coil ID:508MM
|
|
coil weight also can be as per client's requirement from 50kgs to 8000 kgs per coil
|
Mechanical property:
|
Alloy code
|
Temper
|
Tensile Strength Rm(Mpa)
|
Yield Strength Rp0.2(Mpa)
|
Elongation
|
|
TR010,TR020,TR030,TR040,TR050,TR110,TR310,
TR116,TR316,TR111,
TR313,TR121,TR131,
TR141,TR150,TR151,TR156 etc
|
O
|
95~135*
|
≥35*
|
≥15*
|
|
H14
|
140~185
|
≥125
|
≥1.5
|
|
H24
|
140~185
|
≥125
|
≥3
|
|
H16
|
185~225
|
≥160
|
≥1
|
|
H18
|
≥185
|
-
|
≥0.5
|
|
TR166 etc tube material
|
H24
|
185~235
|
≥150
|
≥8
|
|
TR116,TR316 etc tube material
|
H14
|
140~185
|
≥125
|
≥3
|
|
|
H24
|
140~185
|
≥125
|
≥8
|
Color: Blue, red, white, black, yellow, green etc
Alloy code: 1000 series, 2000 series, 3000 series, 4000 series, 5000 series, 6000 series, 8000 series
Aluminum brazing strip coil roll is widely used for manufacturing of various kinds of heat exchangers:
Air conditioning
Engine cooling
Condensers
Evaporators
Radiators
Heater cores
Charge air coolers/intercoolers
Engine oil coolers/transmission oil coolers
Our advantage:
1. Since 2006, we have rich experience in this industry in China;
2. Good reputation in aluminum material industry;
3. We have our own development department for new material research;
4. Good experience and cooperation with big client in the world;
5. With Certificate ISO9001-2008;
6. High performance cost ratio;
7. Fast delivery time;
8. Good communication skills, and good after sells service, and understandings for customers;
FAQ
1, Q: Are you manufacturer of 3003 4343 Aluminum brazing strip for fin stock?
A: Yes, we are established in 2003. As a manufacturer our customers are welcome to visit our factory.
2, Q: Do you accept customized orders?
A: Yes, we do. Your customized orders are always welcomed. Please kindly offer us your technical perfrmances or samples so that we can customize the products according to your preferences. About any further detail, please feel free to contact us.
3. Q: How can I get one quotation faster?
A: Pls offer details about your demands as more as possible,insulation thickness,over diameter,nominal voltage,working temperature,color,quantity,application,etc.
4. Q: If I can not offer above information,what should I do?
A: Try your best to offer more information,we will help you design suitable wires&cables.
