Product Description

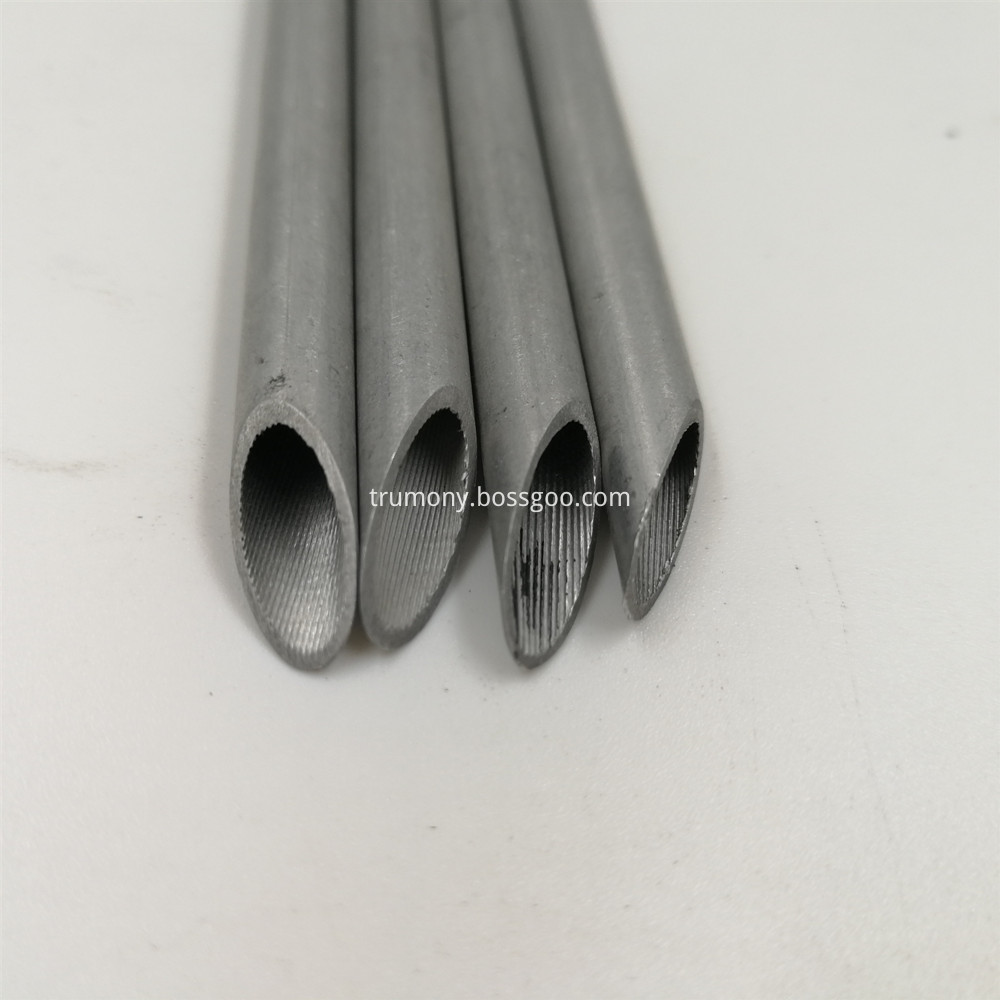

3003 / 3103 Aluminum Inner Grooved Tube
Product name: 3003 / 3103 Aluminum Inner Grooved Tube for Automobile Heat Exchangers
Product Description:
Aluminum Inner Grooved Tube is made of 3003/3103 al-alloy materials through extrusion and drawing that determine its better ductility.And the tooth height from 0.05mm to 0.20mm contributes to its heat conduction performance which is necessary in air-conditioners' heat exchange system.It must be a wise choice for air conditioner factories because of its lowest cost.
|
Specification
|
bottom wall thickness
|
Tooth height
|
Tooth number
|
Helix Angle
|
Rib-top Angle
|
g/m
|
|
φ7mm
|
0.4-0.5
|
0.05-0.18
|
40-50
|
18°
|
50°
|
28+/-3
|
|
φ9.52mm
|
0.45-0.55
|
0.05-0.18
|
45-55
|
18°
|
50°
|
45+/-3
|
|
φ7.94mm
|
0.4-0.5
|
0.05-0.18
|
40-50
|
18°
|
50°
|
40+/-3
|
The parameters in above form can also be adjusted as per customer's request.
Mechanical property:
Tensile:120MPa min
Elongation:35% min
Expanding:40% min
Density:2.7
Application:Air-conditioner heat exchanger system
Product feature:
1. Light-weight
2. Good thermal conductivity properties and electrical conductivity
3. Good corrosion resistance
4. Good forming and bending properties
5. High recycling value
6. Small deviation range
7. High surface quality
Company Introduction:
Trumony Aluminum Co.LTD build from 2006, have export over 53 countries of worldwide. Our main products are aluminum alloy cladding material, cole material and other aluminum products like aluminum sheet, aluminum plate, aluminum coil, aluminum foil, 6101 T63 High Conductivity Aluminum Conduction Plates, aluminum strip, aluminum pipe, aluminum tube, aluminum heat exchange etc, for automobile heat exchangers area such as radiator, intercooler, condenser, evaporator and industrial heat exchangers, like electricity power radiator, air conditioner etc.There are complete sets of modern production and testing equipment operation workshops for casting, hot rolling, cold rolling, coating finishing and advanced check-out for researching and testing,such as WDW-3010- micro-controlled electronic universal testing machine,CALS-2000 aluminum alloy metallographic image analysis system etc.
